Shuttle Vision
Turn the iPhones and iPads you already own into a synchronized multi-angle court replay system, an intelligent solo umpire VAR co-pilot, and an 8-court tournament desk. Settle contested calls in seconds with ¼× slow-motion loops, frame-by-frame scrubbing, and 1-tap adjudication — 100% offline with zero subscriptions.
What Shuttle Vision Does (Honest Transparency)
Shuttle Vision provides high-frame-rate synchronized multi-angle replays, drift-compensated millisecond clock sync, instant ¼× slow-motion loops, official BWF rally rule enforcement, and offline multi-court tournament management. It does not pretend to make black-box automated line calls without human review; it gives players and umpires crystal-clear video evidence to make accurate calls themselves.
Solo Umpire VAR Co-Pilot & Official BWF Scoreboard
Whether you mount a single phone on a tripod at the umpire chair or pair three devices for multi-angle Hawkeye 3D spatial ray tracking, Shuttle Vision eliminates scoring mistakes and ends contested line calls instantly.

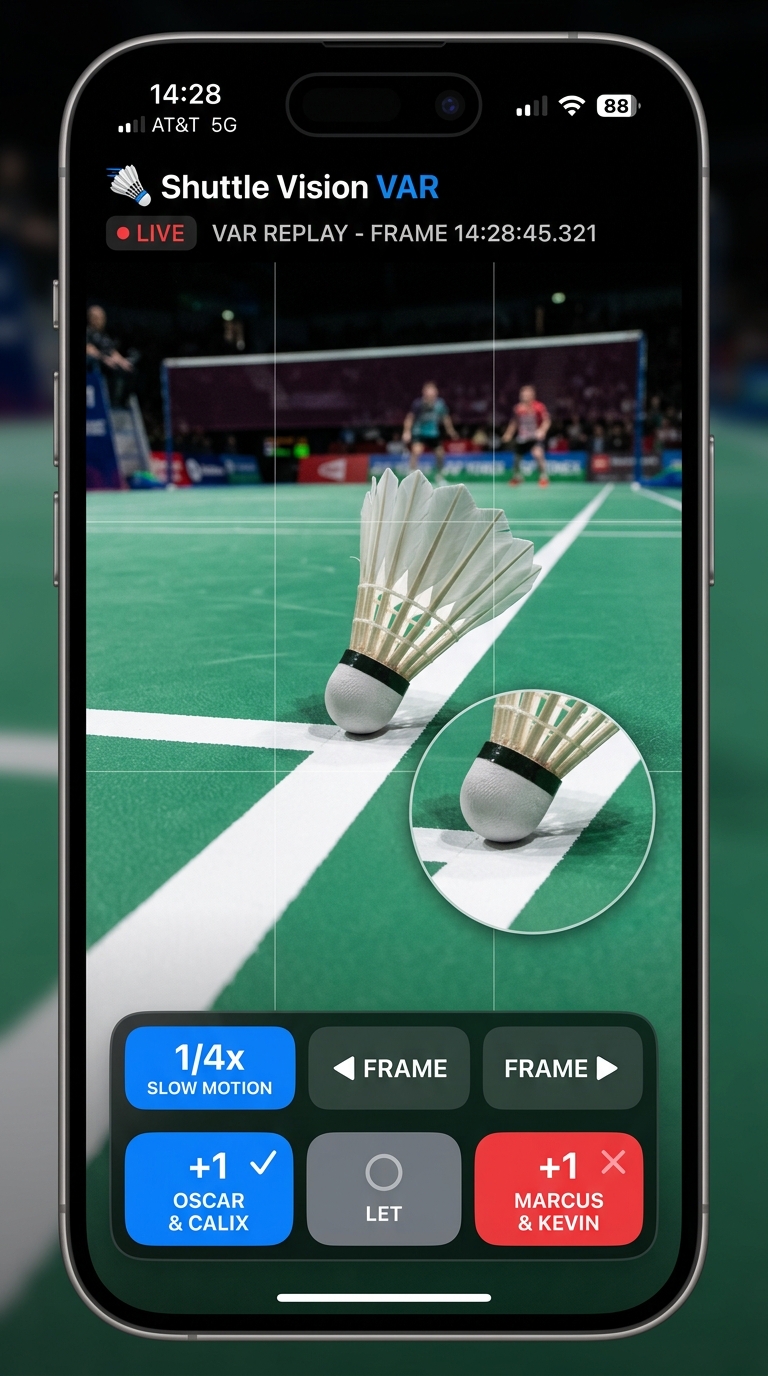

Solo Umpire VAR Decision Co-Pilot
Tapping Umpire Review instantly opens the last rally from the rolling dashcam buffer without waiting for file exports. Plays back in a continuous ¼× slow-motion loop with dedicated ◀ Frame and ▶ Frame stepping controls.

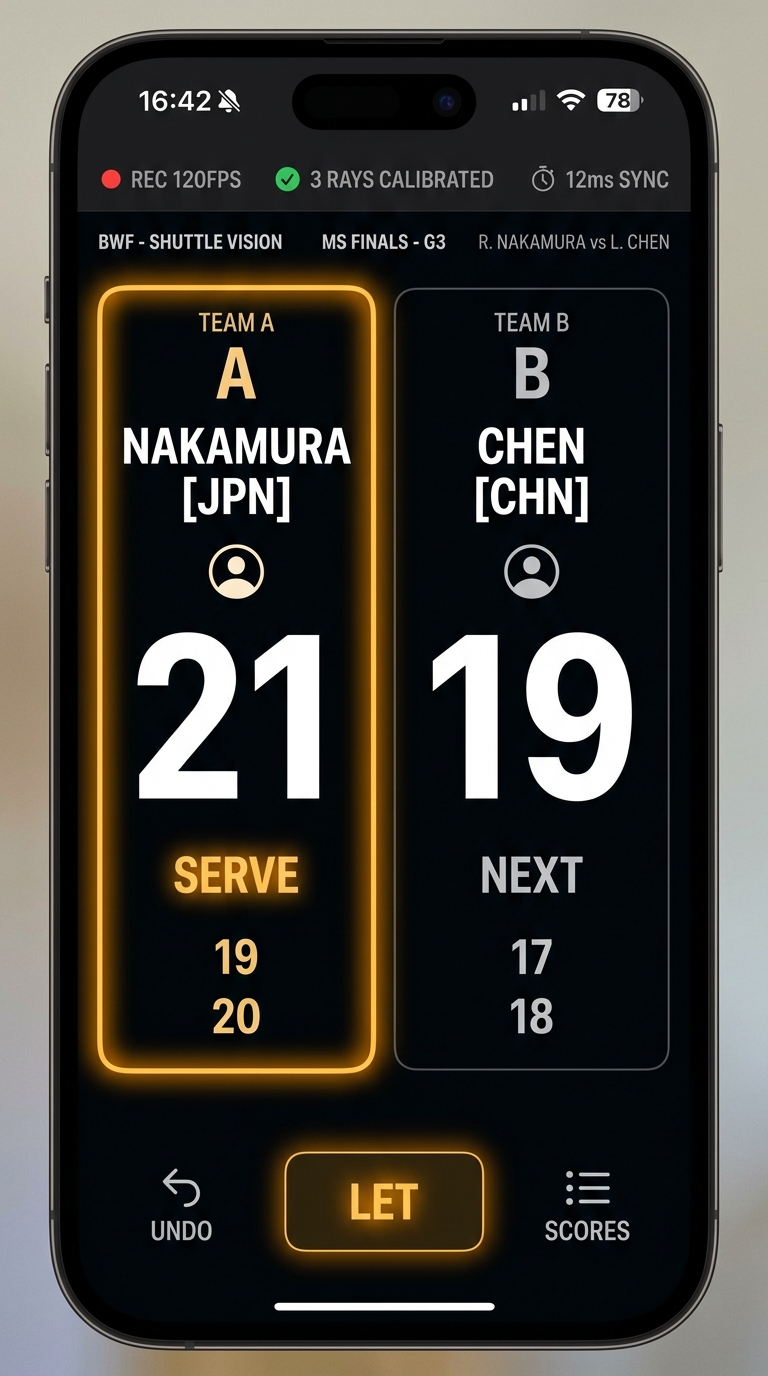

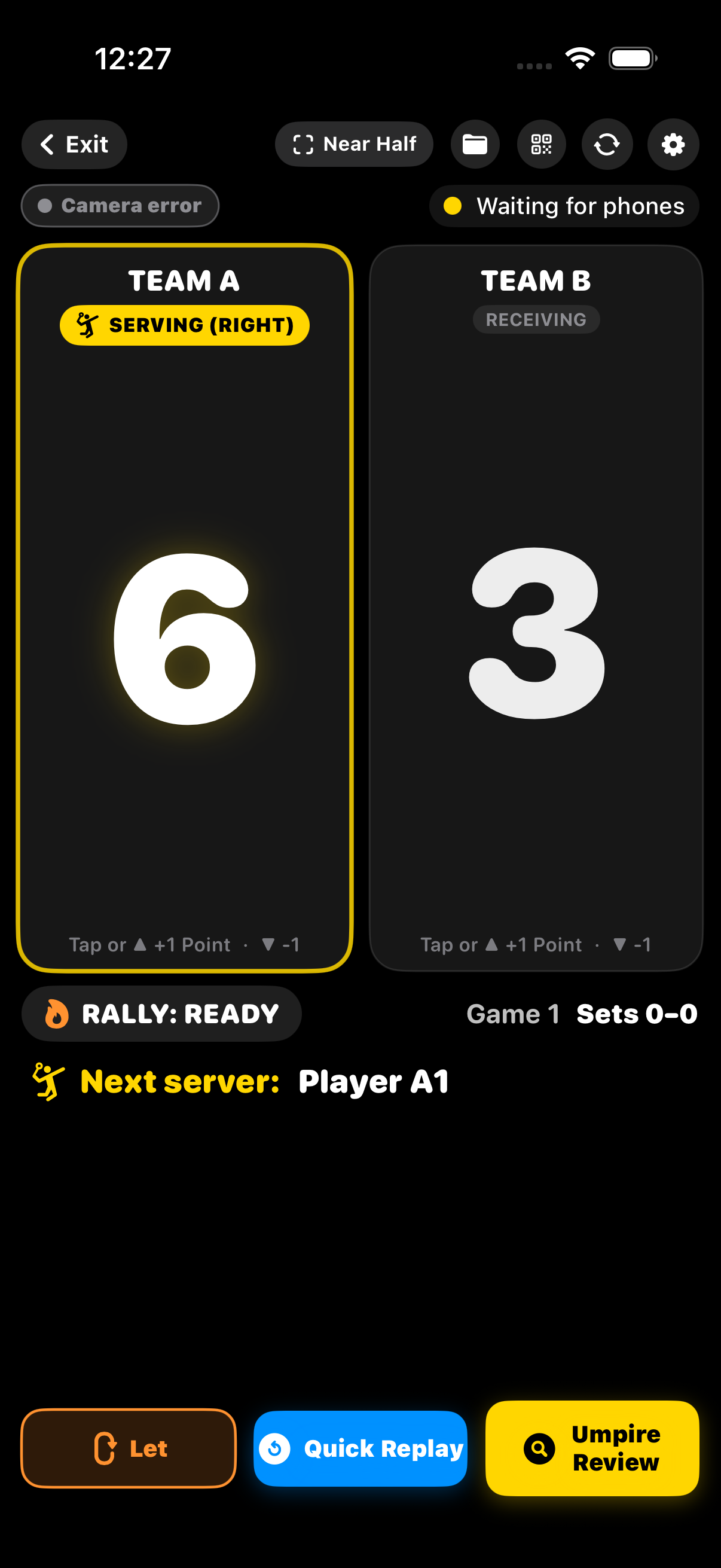

Official BWF Smart Scoreboard
High-contrast 120pt+ score tiles with serve-glowing borders. Automatically tracks server, receiver, and diagonal service boxes (even/odd) across Singles and Doubles. Prompts for 11-point intervals and end changes, with official BWF Law 14 LET support.

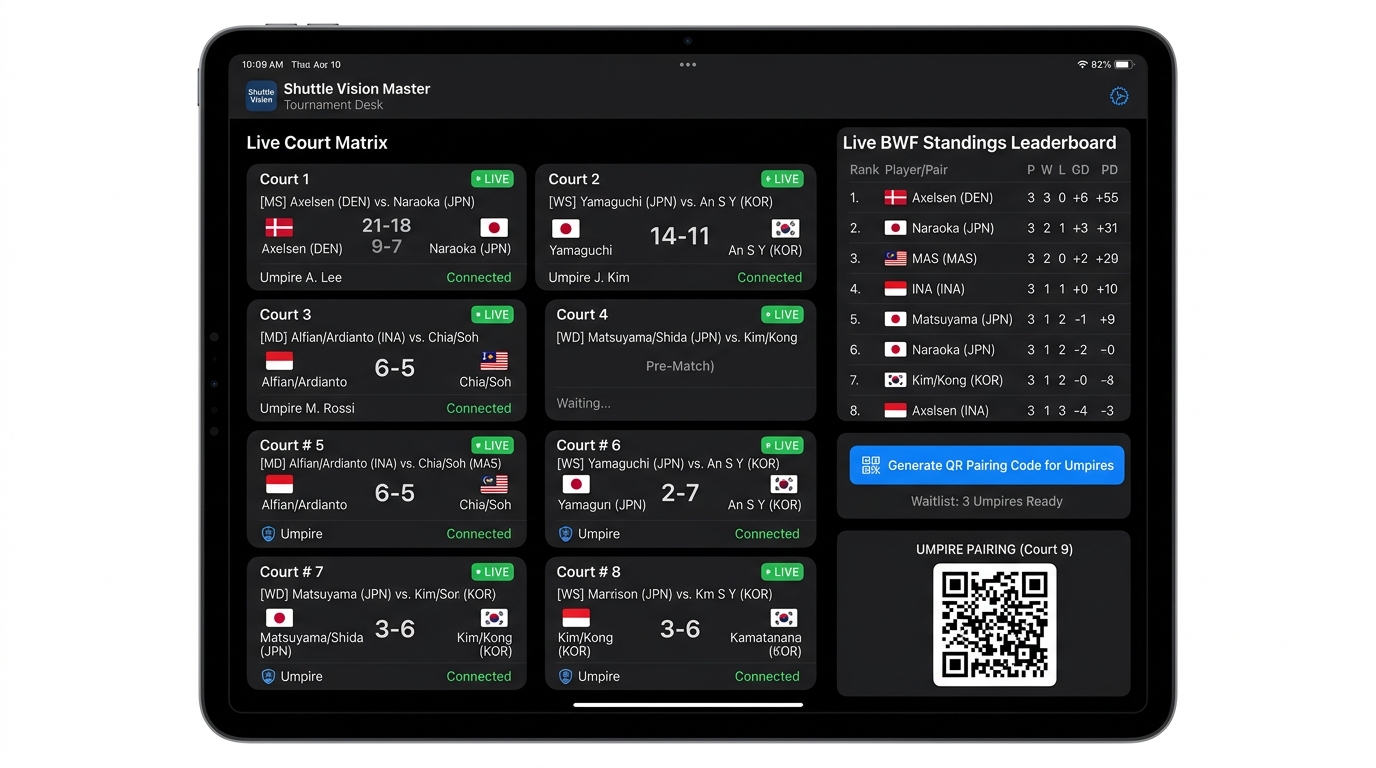

Master Tournament Desk & 8-Court Matrix
Run entire club nights, school championships, and regional opens from a single master iPad. Umpires scan a QR code to connect their iPhones and stream live scores back to the central desk without a Wi-Fi router.

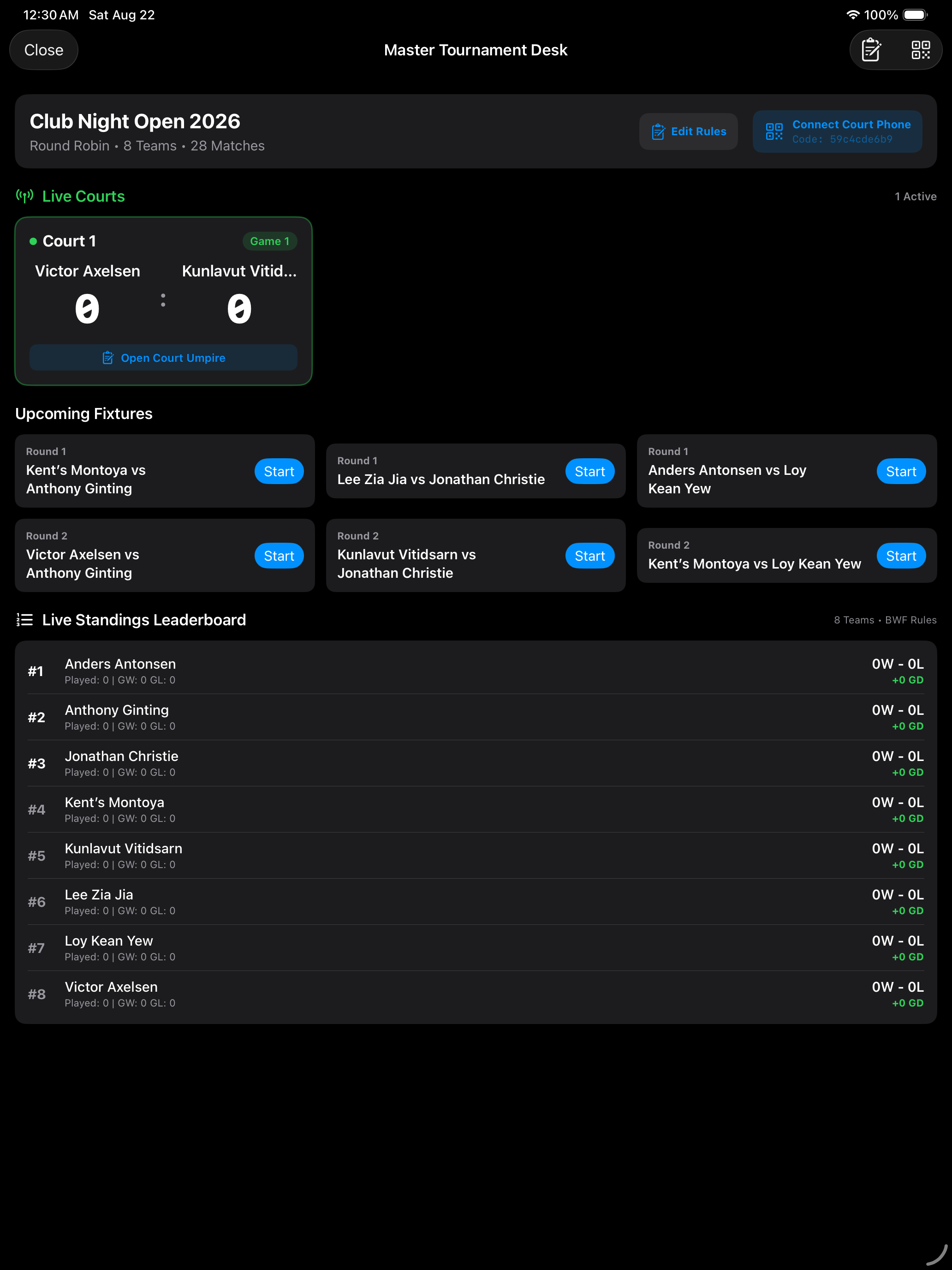

Master Tournament Desk & Live BWF Leaderboard
Monitors up to 8 live courts simultaneously. Calculates standings in real time based on official BWF tie-break rules (Matches Won > Game Difference > Head-to-Head > Point Difference > Points Ratio). Organizers hold master overrule authority, fixture generation (Round Robin, Single Elimination, Open Queue), and CSV export capabilities.
Scalable Multi-Camera Mesh (1 to 3 Phones)
Solo Mode (1 Phone): One phone mounted horizontally at the umpire chair or side of court for full-court lateral coverage — a standalone scoreboard, rolling video buffer, and VAR station.
Duo Mode (2 Phones): Two phones at opposing net poles (~40cm high) facing across the court, with drift-compensated clock sync, consensus scoring, and dual-angle replay.

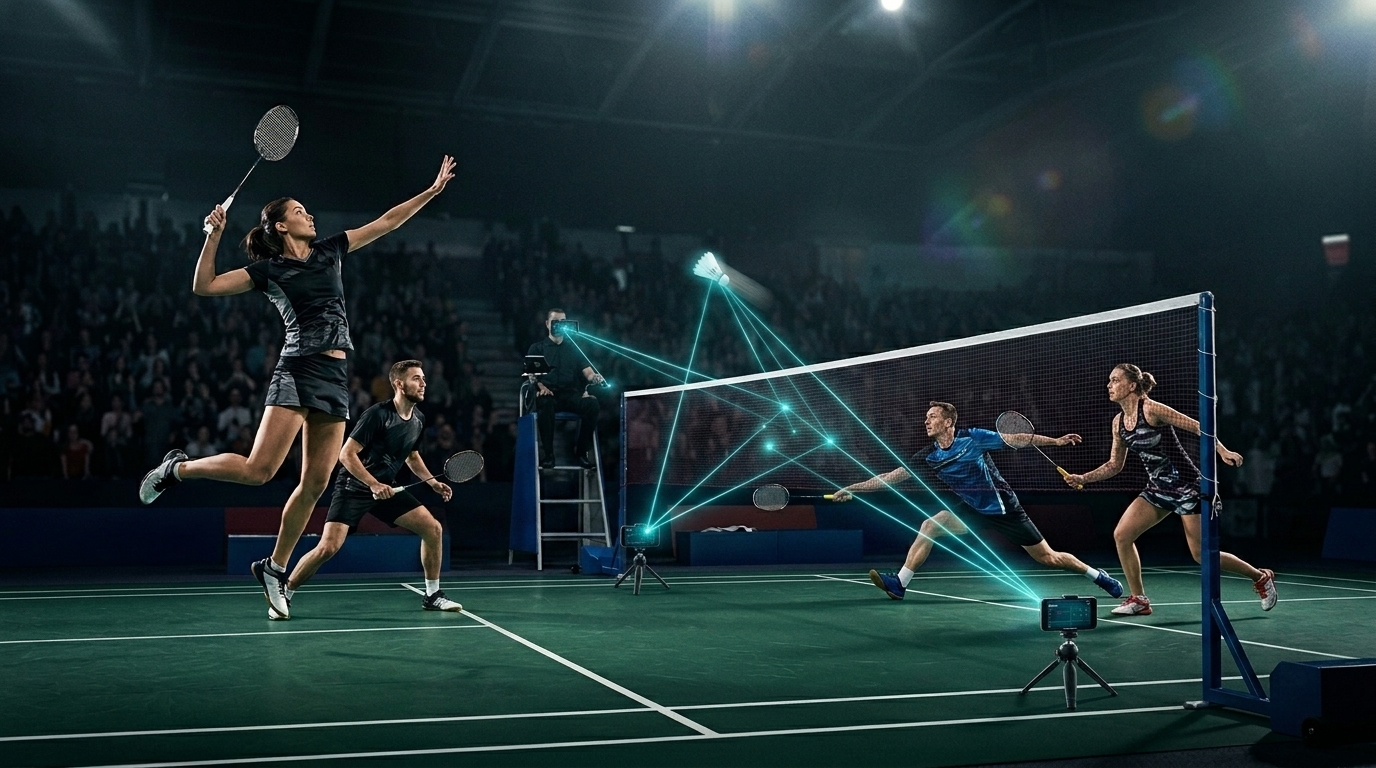

Pro Mode (3 Phones): Two phones at net centre covering opposite halves plus a lateral umpire chair camera, unlocking 3D spatial ray intersection.
How to Get Started on Court
Set up in under 60 seconds with zero network configuration.
Mount the Phone — Don't Hold It
Shuttle Vision tracks the shuttle by measuring how it moves between frames, so it assumes the camera itself is holding still. A handheld phone adds its own motion to every measurement: the shuttle's apparent speed and direction pick up your hand's shake, rolling shutter skews fast movement, and the tracker loses the shuttle more often mid-flight. On a tripod, everything that moves in frame is genuinely moving. Any steady mount works — a tripod, a clamp on the net post, or the phone propped against a bag — but handheld is the one setup we don't recommend for rally counting or line review.
Solo & Casual Match
1. Mount your iPhone horizontally on a tripod at the umpire chair or side of court (~1.2–1.6m high) so it sees the full court.
2. Tap Casual → Quick Start Match, or open Tournament → Solo Umpire Match to name the players first.
3. Tap or swipe up (+1) to score. Tap Umpire Review at any moment to settle a contested line call with slow-mo frame stepping.
Multi-Phone Court Rig

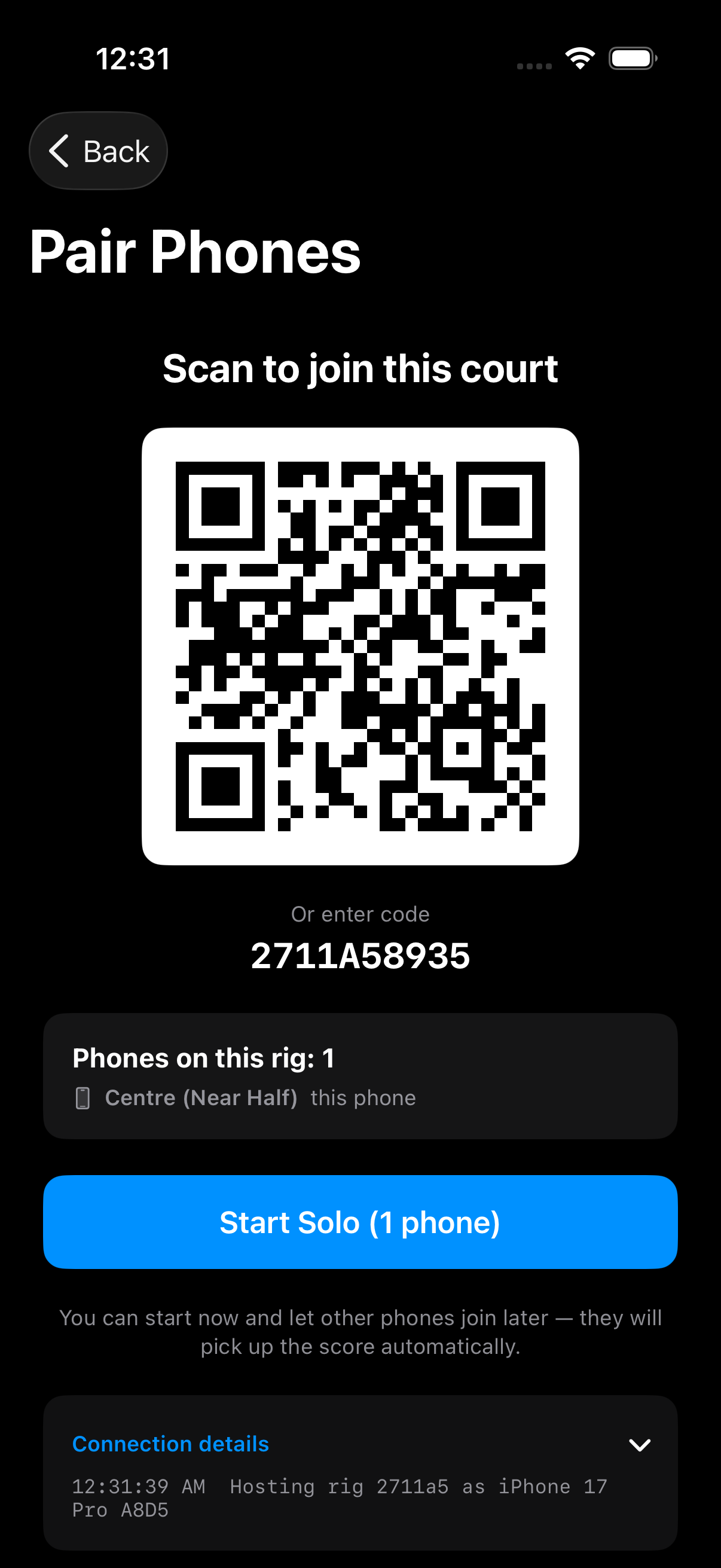

1. Host taps Tournament → Multi-Phone Mesh, picks Duo or Pro, then taps Pair with Other Phones to show the court QR code.
2. The second phone scans that code (or types the join code shown beneath it).
3. Place the phones at opposing net poles (~40cm high). Both cameras synchronize clocks automatically over direct P2P.
Master Tournament Desk
1. Open Shuttle Vision on an iPad and tap Tournament → Tournament Desk & Standings → Create Tournament.
2. Paste your player roster and generate Round Robin, Single Elimination or Open Court Queue fixtures.
3. Open the Master Desk and tap Connect Court Phone. Umpires scan the code, pick their court (Court 1–8), and begin live scorekeeping.
Recommended Equipment & Court Setup
Shuttle Vision uses standard off-the-shelf tripods and devices you already own.
| Component | Recommended Specification | Operational Details |
|---|---|---|
| Tripod Mounts | 1.5m – 1.8m Lightweight Aluminum Tripods | Umpire chair or side of court for solo; net poles (~40cm) for Duo and Pro rigs, angled to cover the full court. |
| Handheld Use | Not Recommended — Use Any Steady Mount | Camera shake is indistinguishable from shuttle movement to the tracker, and rolling shutter skews fast motion. Rally counting and replay review are both noticeably less reliable handheld. |
| Lighting | Standard Indoor Sports Hall Lighting | In VAR Crisp mode Shuttle Vision requests a fast shutter and the highest frame rate the device can hold (up to 120fps), stepping down to 60fps if the phone gets hot. |
| Supported Devices | iPhone XS / iPad 8th Gen or newer (iOS 17+) | Built on AVFoundation high-speed capture, the Apple Vision framework, and hardware video encoding. |
| Networking | Zero Equipment (No Router or Internet Needed) | Uses direct Apple Multipeer Connectivity (Bluetooth + Local Wi-Fi Direct) for 100% offline zero-latency mesh. |
Frequently Asked Questions
Clear, honest answers about privacy, pricing, and court operations.
You can, and recording still works — but we don't recommend it. The shuttle tracker works out what the shuttle is doing by comparing its position frame to frame, which only means something if the camera stayed put. Handheld, your own movement gets added to the shuttle's, the tracker drops the shuttle more often mid-flight, and rolling shutter bends fast motion out of shape. A tripod is ideal, but anything that keeps the phone still — a net-post clamp, a bench, a propped-up bag — gets you most of the way there.
Ready to upgrade your badminton court?
Shuttle Vision is finished and running on real courts, but it has no public App Store listing yet — the build is in TestFlight and the store record is still in review. There is nothing to download here today. If you run a club and want to try it before it ships, email me and I will add you to the TestFlight group.
